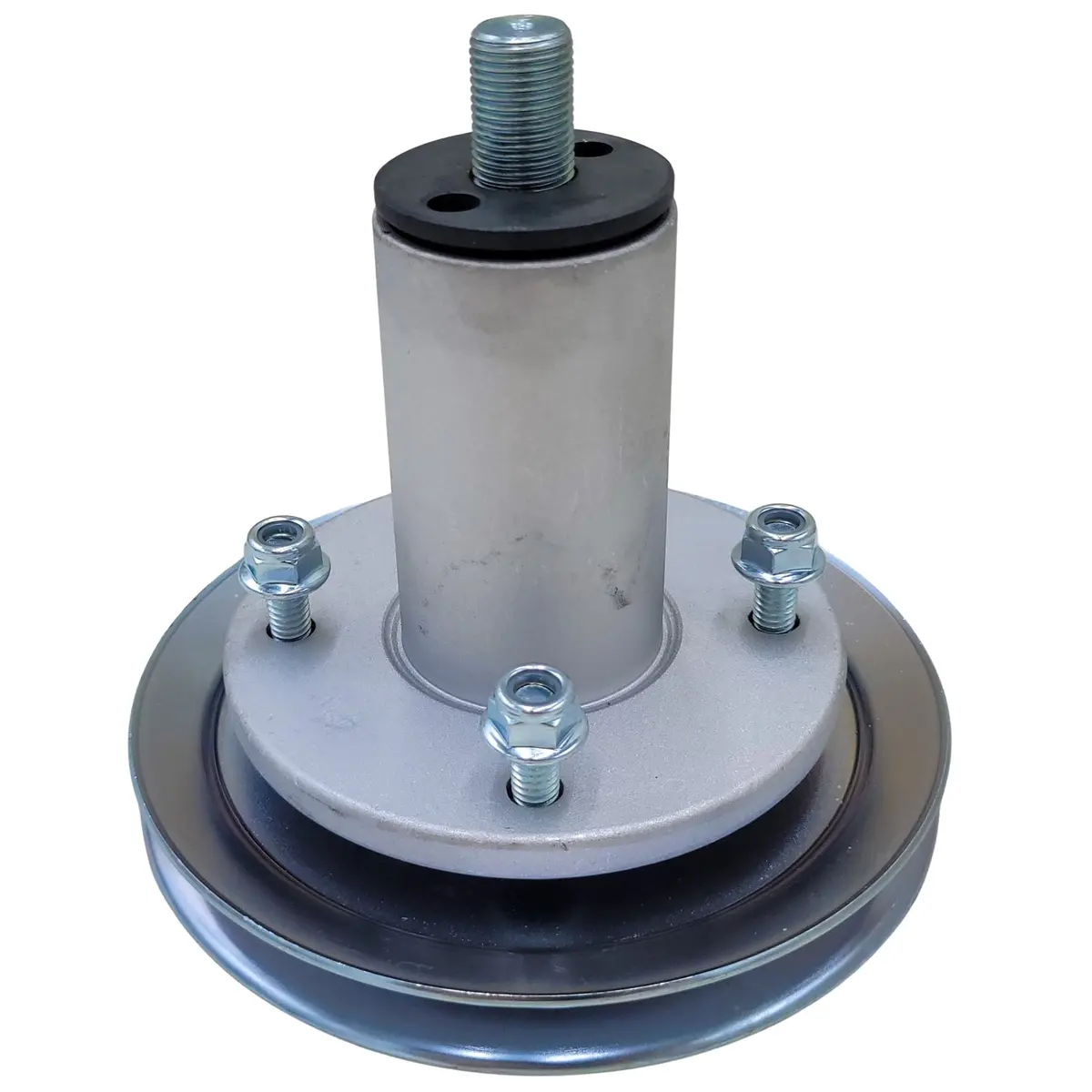

Replacement spindle assembly for Ariens and Gravely zero-turn mowers—fits select 42-inch and 60-inch models, including part numbers 51537300 and 51530700

Description

Replacement spindle assembly kit for specific 60-inch Ariens & Gravely mower models including Ikon-X, Ikon-XD, ZT XL 60, and ZTX 60. Also fits some 42-inch models including Edge and ZT 42.

Please match part numbers in your mower’s parts diagram to verify the fitment.

Ariens 60″ Ikon-XD & Ikon-XL Model Fitment Guide:

• 915217 – Ariens Ikon-XL 60″ Zero-Turn Mower, 25hp Kohler Twin (SN: 000101 & Above)
• 915219 – Ariens Ikon-XL 60″ Zero-Turn Mower, 24hp Briggs & Stratton (SN: 000101 & Above)
• 915228 – Ariens Ikon-XL 60″ Zero-Turn Mower, 25hp Kohler Twin (SN: 035000 – 044999)
• 915228 – Ariens Ikon-XL 60″ Zero-Turn Mower, 25hp Kohler Twin (SN: 045000 – 074999)
• 915228 – Ariens Ikon-XL 60″ Zero-Turn Mower, 25hp Kohler Twin (SN: 075000 – 079999)
• 915228 – Ariens Ikon-XL 60″ Zero-Turn Mower, 25hp Kohler Twin (SN: 000101 – 029999)
• 915228 – Ariens Ikon-XL 60″ Zero-Turn Mower, 25hp Kohler Twin (SN: 030000 – 034999)
• 915228 – Ariens Ikon-XL 60″ Zero-Turn Mower, 25hp Kohler Twin (SN: 080000 & Above)
• 915229 – Ariens Ikon-XL 60″ Zero-Turn Mower, Kawasaki FR (SN: 000101 – 029999)
• 915229 – Ariens Ikon-XL 60″ Zero-Turn Mower, Kawasaki FR (SN: 075000 – 079999)
• 915229 – Ariens Ikon-XL 60″ Zero-Turn Mower, Kawasaki FR (SN: 080000 & Above)
• 915229 – Ariens Ikon-XL 60″ Zero-Turn Mower, Kawasaki FR (SN: 035000 – 044999)
• 915229 – Ariens Ikon-XL 60″ Zero-Turn Mower, Kawasaki FR (SN: 030000 – 034999)
• 915229 – Ariens Ikon-XL 60″ Zero-Turn Mower, Kawasaki FR (SN: 045000 – 074999)
• 915241 – Ariens Ikon-XL 60″ Zero-Turn Mower, Kawasaki FR, CARB (SN: 030000 – 034999)
• 915241 – Ariens Ikon-XL 60″ Zero-Turn Mower, Kawasaki FR, CARB (SN: 035000 – 044999)
• 915241 – Ariens Ikon-XL 60″ Zero-Turn Mower, Kawasaki FR, CARB (SN: 045000 & Above)
• 915273 – Ariens Ikon-XD 60″ Zero-Turn Mower, 23hp Kawasaki FR (SN: 000101 – 002499)
• 915273 – Ariens Ikon-XD 60″ Zero-Turn Mower, 23hp Kawasaki FR (SN: 002500 – 029999)
• 915273 – Ariens Ikon-XD 60″ Zero-Turn Mower, 23hp Kawasaki FR (SN: 030000 – 059999)
• 915273 – Ariens Ikon-XD 60″ Zero-Turn Mower, 23hp Kawasaki FR (SN: 060000 & Above)

Gravely Model Fitment Guide:

• ZT XL 60 (Specific models – match parts numbers)
• ZTX 60 (Specific models – match parts numbers)
• ZT 42 (Specific models – match parts numbers)

Ariens 42″ Edge Model Fitment Guide:

• 915245 – Ariens Edge 42″ Zero-Turn Mower (SN: 002000 & Above)
• 915253 – Ariens Edge 42″ Zero-Turn Mower (SN: 002000 & Above)
• 915283 – Ariens Edge 42″ Zero-Turn Mower (SN: 000101 & Above)
• 915339 – Ariens Edge 42″ Zero-Turn Mower (SN: 000101 & Above)

Need assistance?  Please let us know you are looking at SKU LC-AG-60.
