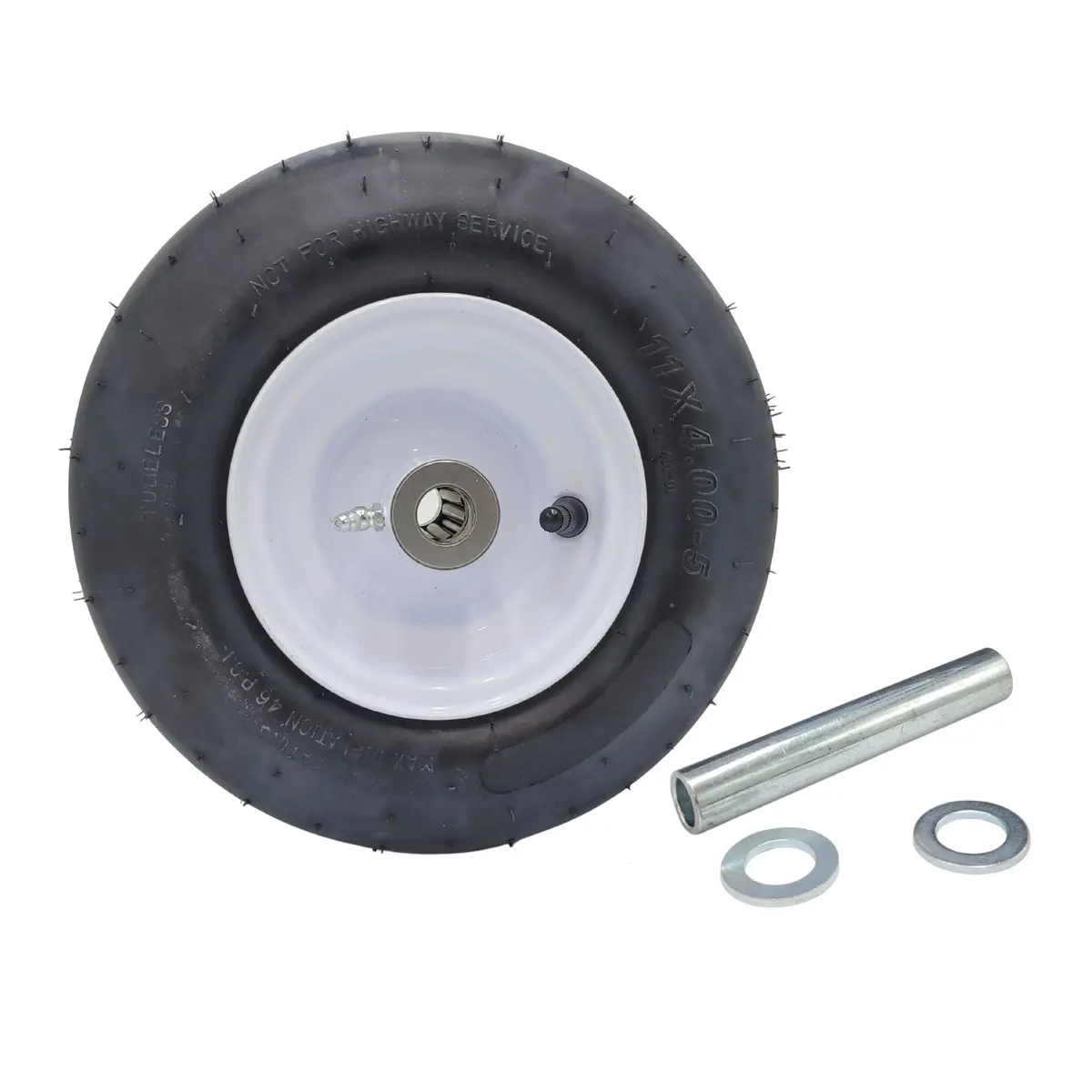

Replacement pneumatic wheel and tire assembly for Exmark Sulky mowers, designed as a direct fit for OEM part number 103-9591—features air-filled construction and integrated grease fitting for extended service life.

Description

We created a greaseable, air-filled (pneumatic) wheel-and-tire assembly to replace Exmark Part Number 103-9591, which is used on some 1-wheel Exmark-brand lawn mower sulkies.  It is also used on some lawn mower models too.

This aftermarket replacement has a grease fitting and uses a roller cage bearing inside of the hub.  2 washers/spacers/bushings are included to achieve the OEM hub length, but it does not affect functionality in any way.

We include the spanner bushing so the final ID is 1/2″ to accept the axle bolt.

All of the dimensions of this assembly match the OEM specifications making it a perfectly acceptable replacement option.

Specs and Dimensions:

• 11×4.00-5 Pneumatic Tire with Ribbed Tread
• 4-1/2″ Centered Hub with Roller Cage Bearing & Grease Zerk Fitting
• 1/2″ Final I.D. (Bore) (The spanner bushing that is included reduces the ID from 3/4″ to 1/2″ to accept the axle bolt.)

Compatible with the following Exmark Sulkies:

• Exmark Sulky (SN: 790000 – 849999) (2009)
• Exmark Sulky (SN: 670000 – 789999) (2007)
• Exmark Sulky for EZ Riders (SN: 510000 – 599999) (2005)
• Exmark Sulky (SN: 850000 – 919999) (2010)
• Exmark Sulky (SN: 510000 – 599999) (2005)

Internal SKU: LC-16358-R-8409-8668-2-3-4-Washers
