John Deere AM101589 – Dual 11×4.00-5 Pneumatic Tire and Wheel Assembly with 5-Inch Centered Hub (3/4-Inch ID)

Description

(Set of 2) Replacement caster wheel and tire assembly for John Deere part number AM101589.  This listing is for 2 wheel and tire assemblies.

Fits the following John Deere QuikTrak™ Commercial ZTR Models with caster wheels that have a tire size of 11×4.00-5:

652B / 652E / 648R / 652R / 652R MOD / 652R EFI / 652R EFI MOD / 661R / 661R EFI

 *Please match part numbers to ensure compatibility.

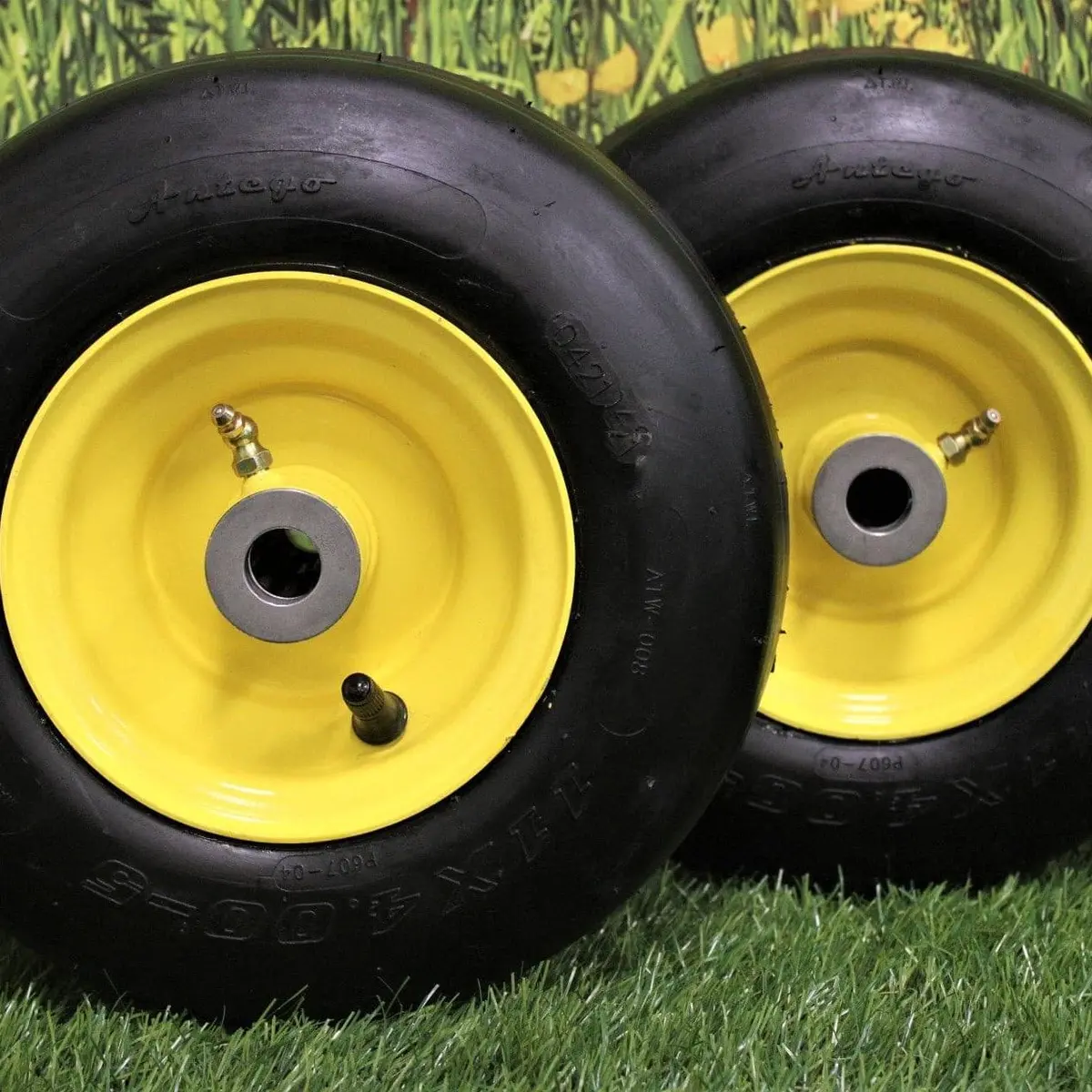

11×4.00-5 pneumatic tubeless tire with smooth tread.  The rim’s centered hub measures 5 inches wide with a 3/4-inch inner diameter or bore.  Has an air valve stem and grease zerk fitting.

Dimensions/Specs:

• Wheel Size: 5×3.25
• Color: John Deere Yellow
• Overall Hub Length: 5”
• Bearing Style: 75” Sintered Iron Bushing
• Tire Size: 11×4.00-5
• Tire Type: Tubeless (Pneumatic)
• Tire Tread: Smooth
• Tire Outside Diameter: 10.9”
• Tire Width (A Sidewalls): 4.05”
• Max Load: 325 lbs
• PSI: 46
• Brand: Antego Tire & Wheel (An OEM Supplier)
• Alternative Part Numbers: A-B1SB8551 and TCA20363 (TCA20363 is the part number for the flat-free version of this caster wheel/tire assembly)
