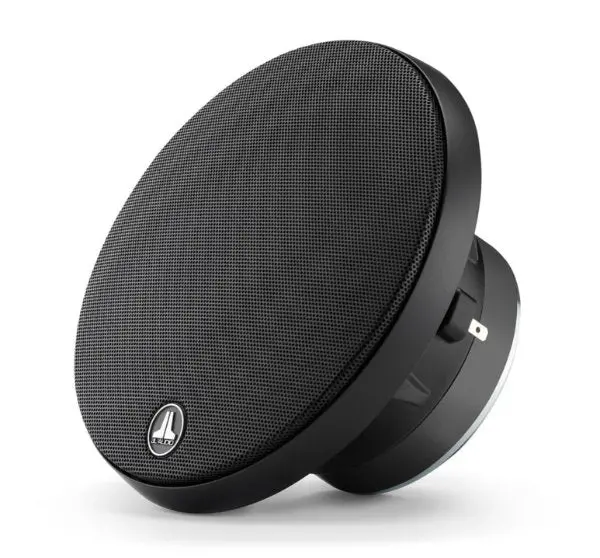

JL Audio C6-650CW 6.5-Inch Component Woofer (75W RMS)

Description

C6-Series 6.5-Inch 75-Watt Single Component Door Woofer.

Born from the same DNA as the JL Audio flagship C7 speakers, the C6 series component drivers let you team premium, pure silk dome tweeters with highly linear woofers to create a loudspeaker system of exceptional refinement, precision and dynamic capability.

Pairing full-frame 6.5-inch or 2.75-inch woofers with 1-inch silk dome tweeters, the C6 series drivers offer advanced sound technology for an exceptional car audio listening experience. Passive crossover networks are not included with the C6 drivers, as they are designed for active systems.

Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar sound quality. The woofer’s center cap is designed to optimize its high-frequency response for seamless tweeter transition.

A high-quality tuning Digital Signal Processor (DSP) — such as the TwK® DSP or a VXi amplifier with built-in DSP — is recommended. Using individual amplifier channels for each C6 speaker enables the system designer to achieve precise setup of equalization, delay and crossover filters for optimal in-vehicle performance.

Sold as a single speaker.

General Specifications

• SIZES	1″, 2.75″, 6.5″
  CONTINUOUS POWER HANDLING (RMS)	1″: 75W, 2.75″: 50W, 6.5″: 100W
  SENSITIVITY (SPL @ 1 W/1 M)	1″: 90dB, 2.75″: 83.50dB, 6.5″: 87.37dB
  SENSITIVITY (SPL @ 1 W/0.5 M)	1″: 96dB
  SENSITIVITY (SPL @ 2.83 V/1 M)	1″: 93dB, 2.75″: 86.50dB, 6.5″: 90.33dB
  FREQUENCY RESPONSE (+/- 3 DB)	1″: 3kHz-21KHz, 2.75″: 350 Hz-4.KHz, .5″: 55Hz-6KHz
  NOMINAL IMPEDANCE	4 Ω
  RECOMMENDED AMPLIFIER POWER (RMS)	1″: 25-100W Channel, 2.75″: 25-80W Channel, 6.5″: 25-150W Channel
  VOICE COIL DIAMETER	2.75″: 0.8″ (20.5mm), 6.5″: 1.27″ (32mm)
  CONE MATERIAL	Vacuum-formed, mineral-filled polypropylene
  TWEETER TYPE	Silk Dome
  TWEETER SIZE	1″ (25mm)
  GRILLE(S) INCLUDED	yes
  WARRANTY	1 year
  CONNECTIONS
  SPEAKER CONNECTIONS	Spade connectors
  MOUNTING DIMENSIONS
  FRAME OUTER DIAMETER	2.75″: 2.52″ (77mm), 6.5″: 6.5″ (165mm)
  MOUNTING DEPTH CLEARANCE	2.75″: 1.42″ (36mm), 6.5″: 2.60″ (66mm)
  FRONTAL GRILLE PROTRUSION	2.75″: 0.47″ (12mm), 6.5″: 1″ (25mm)
  MOUNTING HOLE	2.75″: 2.52″ (64mm), 6.5″: 5.46″ (139mm)
  GRILLE TRAY OUTER DIAMETER	2.75″: 3.58″ (91mm), 6.5″: 6.76″ (172mm)
  BOLT HOLE CIRCLE	2.75″: 3.03″ (77mm), 6.5″: 6.12″ (156mm)
  MOTOR OUTER DIAMETER	2.75″: 2.75″ (69mm), 6.5″: 3.54″ (90mm)
  PARMETERS
  FREE AIR RESONANCE (FS)	1″: 1500Hz, 2.75″: 185Hz, 6.5″: 52.8Hz
  ELECTRICAL “Q” (QES)	2.75″: 0.769, 6.5″: 0.647
  MECHANICAL “Q” (QMS)	2.75″: 7.848, 6.5″: 5.076
  TOTAL “Q” (QTS)	2.75″: 0.700, 6.5″: 0.574
  EQUIVALENT COMPLIANCE (VAS)	2.75″: 0.0353 cu ft (0.125L), 6.5″: 0.532 cu ft (15.069L)
  ONE-WAY LINEAR EXCURSION (XMAX; SPECS ARE DERIVED VIA ONE-WAY VOICE COIL OVERHANG METHOD WITH NO CORRECTION FACTORS APPLIED)	2.75″: 0.059″ (1.50mm), 6.5″: 0.148″ (3.75mm)
  REFERENCE EFFICIENCY (NO)	1″: 0.602%, 2.75″: 0.1414%, 6.5″: 0.344%
  MOVING MASS (MMS)	2.75″: 4.65g, 6.5″: 16.42g
  MECHANICAL COMPLIANCE (CMS)	2.75″: 0.00031 m/N, 6.5″: 0.000581 m/N
  MAGNETIC STRENGTH (BL)	2.75″: 5.03, 6.5″: 5.186
  EFFECTIVE PISTON AREA (SD)	2.75″: 3.66 in² (0.00236m²), 6.5″: 21.4 in² (0.013807m²)
  DC RESISTANCE (RE)	1″ & 6.5″: 3.20Ω, 2.75″: 3.58Ω
  TWEETER SPECS
  FLUSH MOUNT FIXTURE DIAMETER	1″: 2.13″ (54mm)
  SURFACE MOUNT FIXTURE DIAMETER	1″: 2.11″ (54mm)
  FLUSH MOUNT MOUNTING HOLE DIAMETER	1″: 1.85″ (47mm)
  FLUSH MOUNT MOUNTING DEPTH	1″: 1.85″ (47mm)
  FLUSH MOUNT TWEETER FRONTAL PROTRUSION	1″: 0.30″ (8mm)
  SURFACE MOUNT TWEETER FRONTAL PROTRUSION	1″: 1.04″ (26mm)

Documentation

• JL Audio C6-650cw Manual
